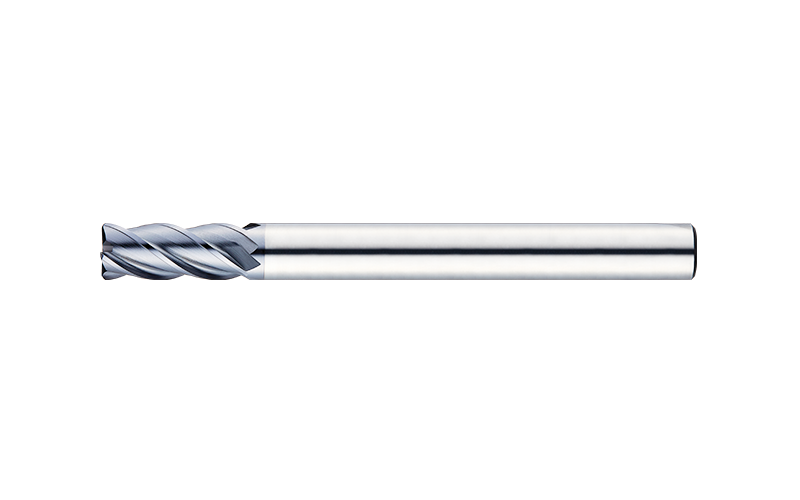

SUS용 4날 코너R 엔드밀 Model No. S4CR

특징(Feature of product)

홈,측면가공 복잡한 포켓가공에 적합함.
부등분할 설계로 진동을 최소화 하여 부드러운 가공이 가능

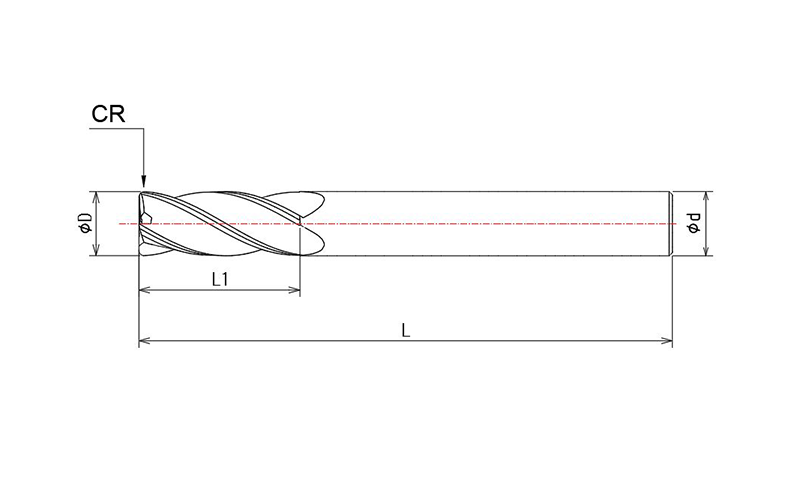

모델번호	인선직경	코너반경	날장	생크경	전장	재 고
EDP.No	Outside Diamdter	Coner Radius	Length of	Shank	Overall	Stock
EDP.No	D	R	Cut (1.)	Diameter (d)	Length (L)	Stock
S4CR-010-R01-025-06-050	1	R0.1	2.5	6	50
S4CR-010-R02-025-060-050	1	R0.2	2.5	6	50
S4CR-012-R01-030-060-050	1.2	R0.1	3	6	50
S4CR-015-R01-040-060-050	1.5	R0.1	4	6	50
S4CR-015-R02-040-060-050	1.5	R0.2	4	6	50
S4CR-020-R01-060-060-050	2	R0.1	6	6	50
S4CR-020-R02-060-060-050	2	R0.2	6	6	50
S4CR-025-R02-070-060-050	2.5	R0.2	7	6	50
S4CR-030-R02-080-060-055	3	R0.2	8	6	55
S4CR-030-R03-080-060-055	3	R0.3	8	6	55
S4CR-030-R05-080-060-055	3	R0.5	8	6	55
S4CR-040-R02-100-060-055	4	R0.2	10	6	55
S4CR-040-R03-100-060-055	4	R0.3	10	6	55
S4CR-040-R05-100-060-055	4	R0.5	10	6	55
S4CR-050-R02-150-060-060	5	R0.2	15	6	60
S4CR-050-R03-150-060-060	5	R0.3	15	6	60
S4CR-050-R05-150-060-060	5	R0.5	15	6	60
S4CR-060-R02-150-060-060	6	R0.2	15	6	60
S4CR-060-R03-130-060-060	6	R0.3	13	6	60
S4CR-060-R03-150-060-060	6	R0.3	15	6	60
S4CR-060-R05-150-060-060	6	R0.5	15	6	60
S4CR-070-R03-160-080-065	7	R0.3	16	8	65
S4CR-080-R03-200-080-070	8	R0.3	20	8	70
S4CR-080-R05-200-080-070	8	R0.5	20	8	70
S4CR-080-R10-200-080-070	8	R1.0	20	8	70
S4CR-090-R03-190-100-070	9	R0.3	19	10	70
S4CR-100-R03-220-100-070	10	R0.3	22	10	70
S4CR-100-R03-250-100-075	10	R0.3	25	10	75
S4CR-100-R05-250-100-075	10	R0.5	25	10	75
S4CR-100-R10-250-100-075	10	R1.0	25	10	75
S4CR-100-R15-250-100-075	10	R1.5	25	10	75
S4CR-100-R20-250-100-075	10	R2.0	25	10	75
S4CR-100-R30-250-100-075	10	R3.0	25	10	75
S4CR-120-R03-260-120-080	12	R0.3	26	12	80
S4CR-120-R05-300-120-080	12	R0.5	30	12	80
S4CR-120-R10-300-120-080	12	R1.0	30	12	80
S4CR-120-R15-300-120-080	12	R1.5	30	12	80
S4CR-120-R20-300-120-080	12	R2.0	30	12	80
S4CR-120-R30-300-120-080	12	R3.0	30	12	80
S4CR-120-R40-300-120-080	12	R4.0	30	12	80
S4CR-140-R03-260-140-090	14	R0.3	26	14	90
S4CR-160-R03-320-140-100	16	R0.3	32	16	100
S4CR-180-R03-320-180-100	18	R0.3	32	18	100
S4CR-200-R03-380-200-100	20	R0.3	38	20	100
