4날 고경도 리브 엔드밀 Model No. H4RE

특징(Feature of product)

고경도강,프리하든강 계열 가공 엔드밀
초미립자 초경합금, 실리콘(Si) 코팅을 적용하여 내마모 및 내열성에 우수함.

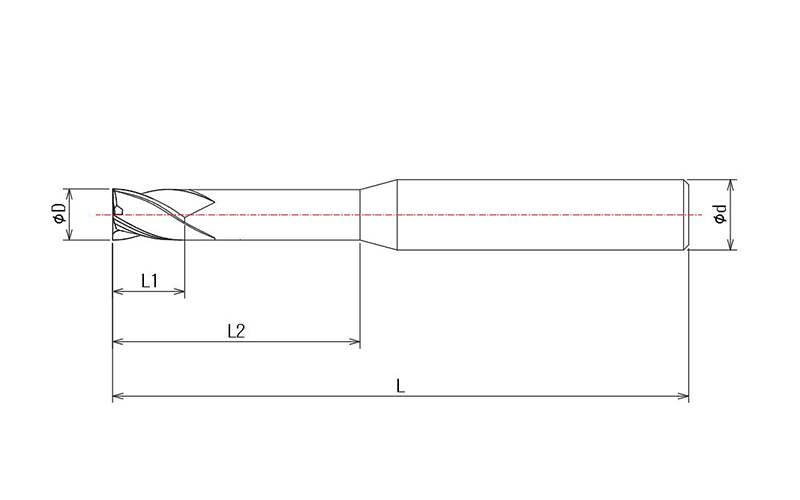

모델번호	인선직경	날장	유효장	생크경	전장	재 고
EDP.No	Outside Diamdter	Length of	Effective	Shank	Overall	Stock
EDP.No	D	Cut (1.)	Length (1.)	Diameter (d)	Length (L)	Stock
H4RE-010-030-040-045	1	1.5	3	4	45
H4RE-010-040-040-045	1	2	4	4	45
H4RE-010-060-040-045	1	2	6	4	45
H4RE-010-080-040-045	1	1.5	8	4	45
H4RE-010-100-040-045	1	1.5	10	4	45
H4RE-015-040-040-045	1.5	2.3	4	4	45
H4RE-015-060-040-045	1.5	2.3	6	4	45
H4RE-015-080-040-045	1.5	2.3	8	4	45
H4RE-015-100-040-045	1.5	2.3	10	4	45
H4RE-015-120-040-045	1.5	2.3	12	4	45
H4RE-015-160-040-050	1.5	2.3	16	4	50
H4RE-020-060-040-045	2	3	6	4	45
H4RE-020-080-040-045	2	3	8	4	45
H4RE-020-100-040-045	2	3	10	4	45
H4RE-020-120-040-045	2	3	12	4	45
H4RE-020-160-040-050	2	3	16	4	50
H4RE-020-200-040-050	2	3	20	4	50
H4RE-030-080-060-050	3	4.5	8	6	50
H4RE-030-100-060-050	3	4.5	10	6	50
H4RE-030-120-060-050	3	4.5	12	6	50
H4RE-030-160-060-060	3	4.5	16	6	60
H4RE-030-200-060-060	3	4.5	20	6	60
H4RE-040-100-060-050	4	6	10	6	50
H4RE-040-120-060-050	4	6	12	6	50
H4RE-040-160-060-060	4	6	16	6	60
H4RE-040-200-060-060	4	6	20	6	60
H4RE-040-250-060-065	4	6	25	6	65
H4RE-050-160-060-060	5	8	16	6	60
H4RE-050-300-060-070	5	8	30	6	70
H4RE-060-150-060-060	6	9	15	6	60
H4RE-060-200-060-060	6	9	20	6	60
H4RE-060-300-060-070	6	9	30	6	70
H4RE-080-200-080-065	8	12	20	8	65
H4RE-080-300-080-080	8	12	30	8	80
H4RE-080-400-080-100	8	12	40	8	100
H4RE-100-250-100-070	10	15	25	10	70
H4RE-100-350-100-100	10	15	35	10	100
H4RE-100-450-100-100	10	15	45	10	100
H4RE-120-300-120-080	12	18	30	12	80
H4RE-120-400-120-110	12	18	40	12	110
H4RE-120-500-120-110	12	18	50	12	110
