4날 고경도 코너R 엔드밀(H4CR) : 유림툴스 주식회사

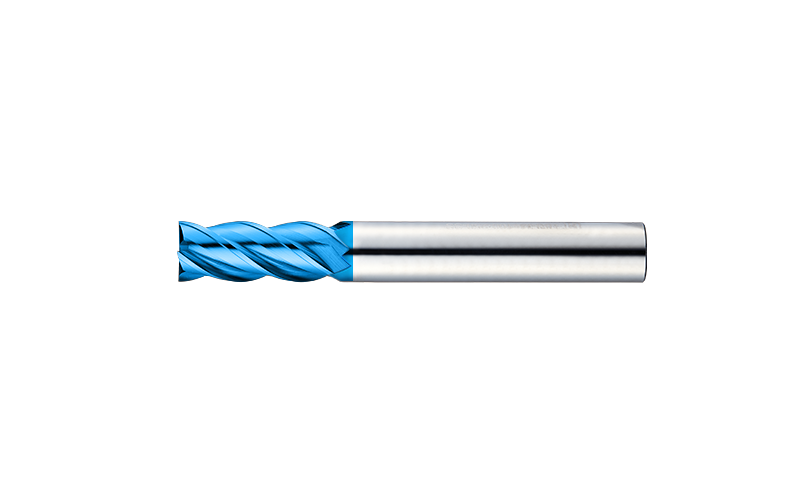

4날 고경도 코너R 엔드밀 Model No. H4CR

특징(Feature of product)

고경도강,프리하든강 계열 가공 엔드밀
초미립자 초경합금, 실리콘(Si) 코팅을 적용하여 내마모 및 내열성에 우수함.

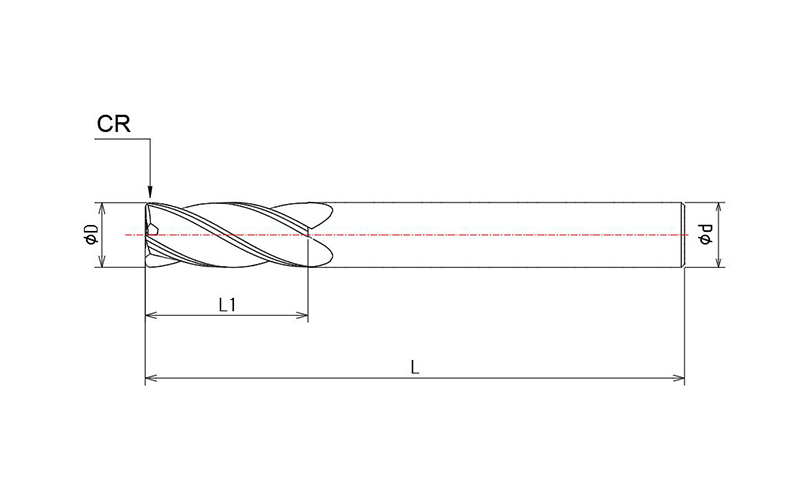

모델번호	인선직경	코너반경	날장	생크경	전장	재 고
EDP.No	Outside Diamdter	Coner Radius	Length of	Shank	Overall	Stock
EDP.No	D	R	Cut (1.)	Diameter (d)	Length (L)	Stock
H4CR-010-R01-025-040-045	1	R1.0	2.5	4	45
H4CR-010-R02-025-040-045	1	R0.2	2.5	4	45
H4CR-010-R03-025-040-045	1	R0.3	2.5	4	45
H4CR-015-R01-040-040-045	1.5	R0.1	4	4	45
H4CR-015-R02-040-040-045	1.5	R0.2	4	4	45
H4CR-015-R03-040-040-045	1.5	R0.3	4	4	45
H4CR-015-R05-040-040-045	1.5	R0.5	4	4	45
H4CR-020-R01-060-040-045	2	R0.1	6	4	45
H4CR-020-R02-060-040-045	2	R0.2	6	4	45
H4CR-020-R03-060-040-045	2	R0.3	6	4	45
H4CR-020-R05-060-040-045	2	R0.5	6	4	45
H4CR-025-R01-060-040-050	2.5	R0.1	6	4	50
H4CR-025-R02-060-040-050	2.5	R0.2	6	4	50
H4CR-025-R03-060-040-050	2.5	R0.3	6	4	50
H4CR-025-R05-060-040-050	2.5	R0.5	6	4	50
H4CR-030-R01-080-060-060	3	R0.1	8	6	60
H4CR-030-R02-080-060-060	3	R0.2	8	6	60
H4CR-030-R03-080-060-060	3	R0.3	8	6	60
H4CR-030-R05-080-060-060	3	R0.5	8	6	60
H4CR-040-R01-100-060-070	4	R0.1	10	6	70
H4CR-040-R02-100-060-070	4	R0.2	10	6	70
H4CR-040-R03-100-060-070	4	R0.3	10	6	70
H4CR-040-R05-100-060-070	4	R0.5	10	6	70
H4CR-040-R10-100-060-070	4	R1.0	10	6	70
H4CR-050-R01-130-060-075	5	R0.1	13	6	75
H4CR-050-R02-130-060-075	5	R0.2	13	6	75
H4CR-050-R03-130-060-075	5	R0.3	13	6	75
H4CR-050-R05-130-060-075	5	R0.5	13	6	75
H4CR-050-R10-130-060-075	5	R1.0	13	6	75
H4CR-060-R01-130-060-090	6	R0.1	13	6	90
H4CR-060-R02-130-060-090	6	R0.2	13	6	90
H4CR-060-R03-130-060-090	6	R0.3	13	6	90
H4CR-060-R05-130-060-090	6	R0.5	13	6	90
H4CR-060-R10-130-060-090	6	R1.0	13	6	90
H4CR-080-R01-190-080-100	8	R0.1	19	8	100
H4CR-080-R02-190-080-100	8	R0.2	19	8	100
H4CR-080-R03-190-080-100	8	R0.3	19	8	100
H4CR-080-R05-190-080-100	8	R0.5	19	8	100
H4CR-080-R10-190-080-100	8	R1.0	19	8	100
H4CR-080-R20-190-080-100	8	R2.0	19	8	100
H4CR-100-R02-220-100-100	10	R0.2	22	10	100
H4CR-100-R03-220-100-100	10	R0.3	22	10	100
H4CR-100-R05-220-100-100	10	R0.5	22	10	100
H4CR-100-R10-220-100-100	10	R1.0	22	10	100
H4CR-100-R20-220-100-100	10	R2.0	22	10	100
H4CR-120-R02-260-120-110	12	R0.2	26	12	110
H4CR-120-R03-260-120-110	12	R0.3	26	12	110
H4CR-120-R05-260-120-110	12	R0.5	26	12	110
H4CR-120-R10-260-120-110	12	R1.0	26	12	110
H4CR-120-R20-260-120-110	12	R2.0	26	12	110
